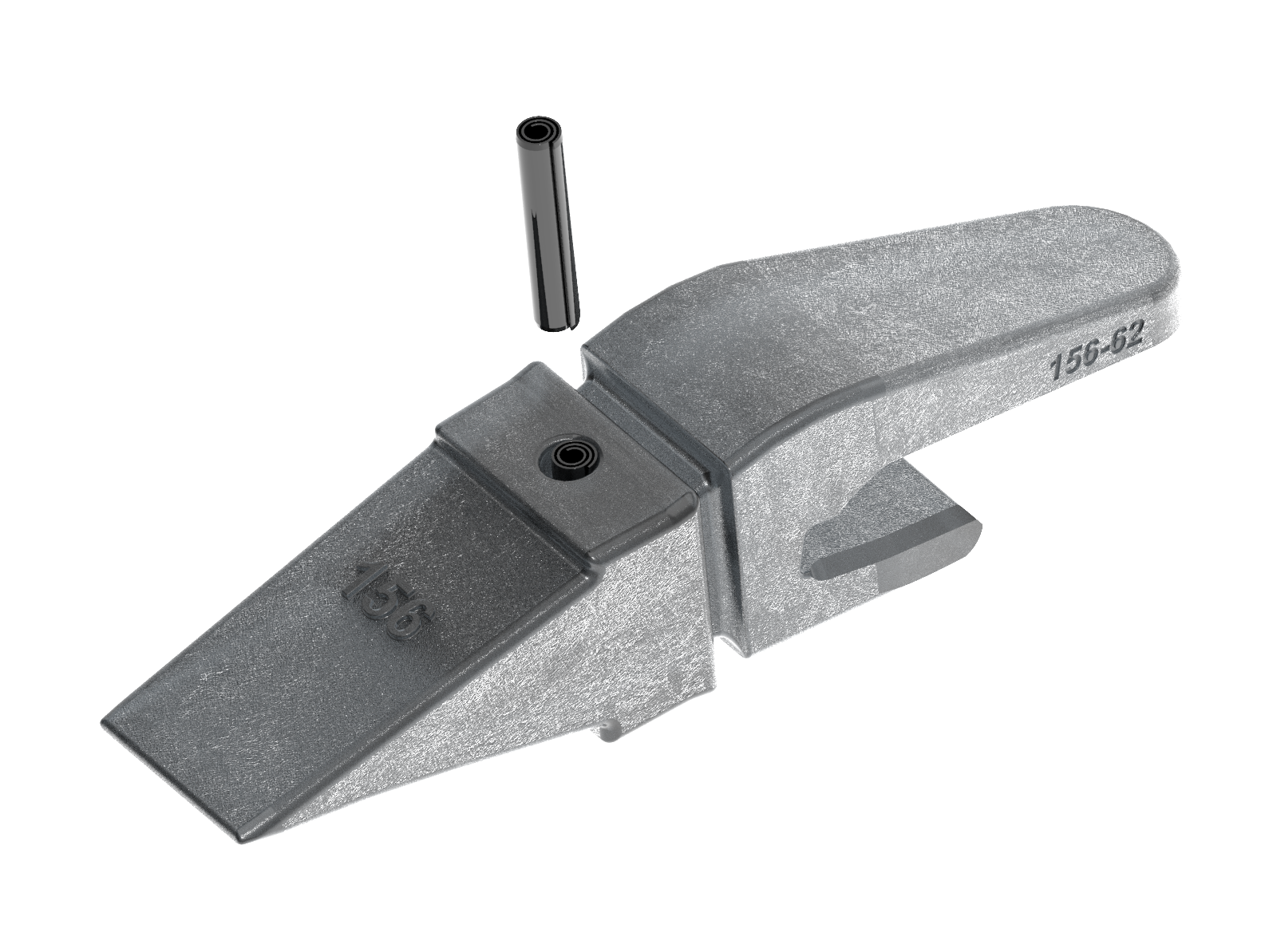

156 Bucket teeth and Adapter

Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes:
Lost-Wax /Precoated Silica Sand
Heat Treatment:
Normalizing, Annealing, Quenching, Tempering
Surface Finish:
Shot Blasting, Polishing, Baking Varnish

Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days

LIHUA castings is a provider of casting parts solutions. From casting Wear Parts to excavator buckets, bucket teeth, and cutting edge blades, we specialize in delivering innovative and high-quality products tailored to meet the diverse needs of our clients.

At LIHUA, our commitment to excellence extends to our manufacturing processes. To this end, a great deal of attention has been paid to all aspects, starting from the design to the selection of raw materials and production processes.

Specifications
Part No	156 / 156-62	Total thickness(H)	2.16" [55 mm]

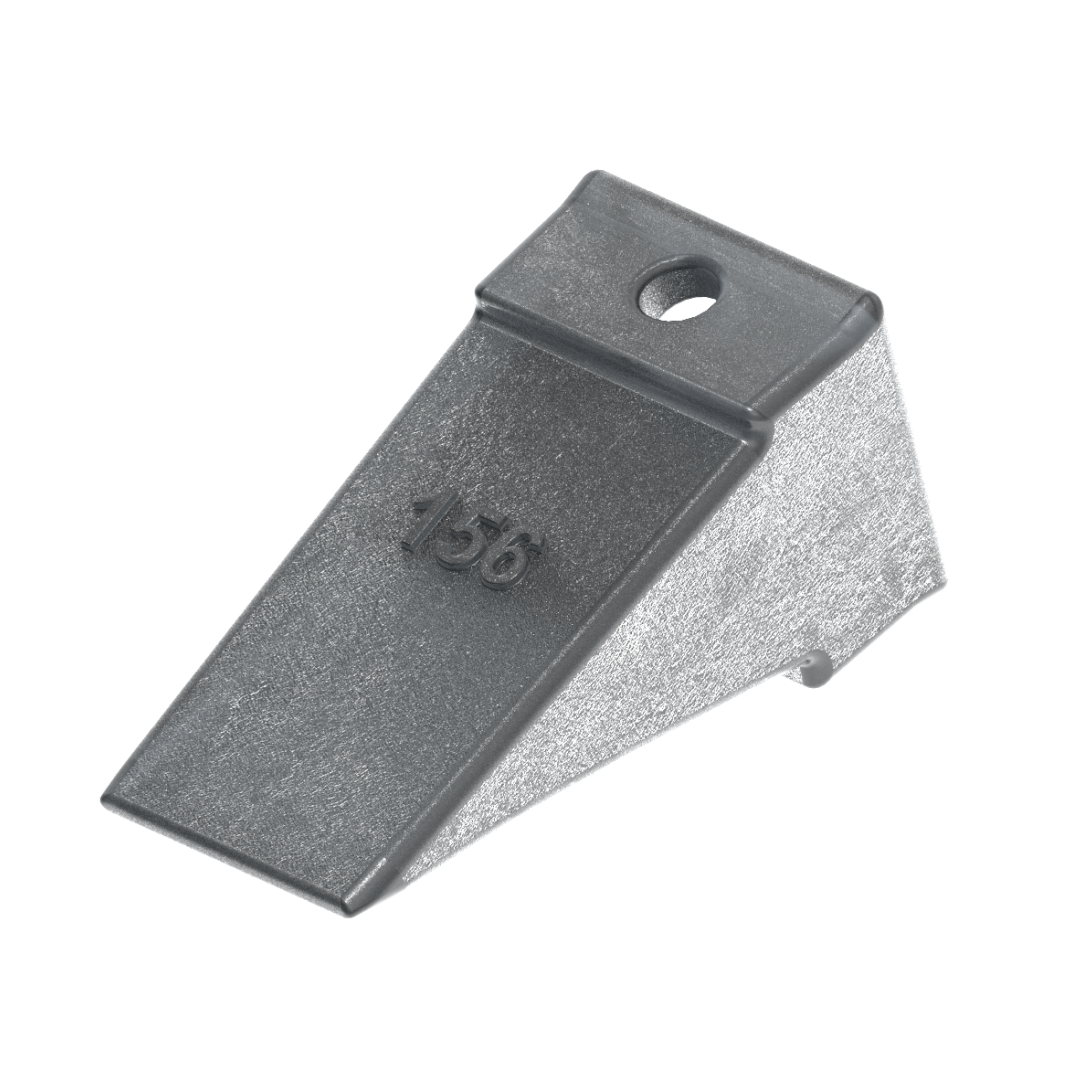

Bucket Tooth	156	Total Length(L)	9.52" [242 mm]

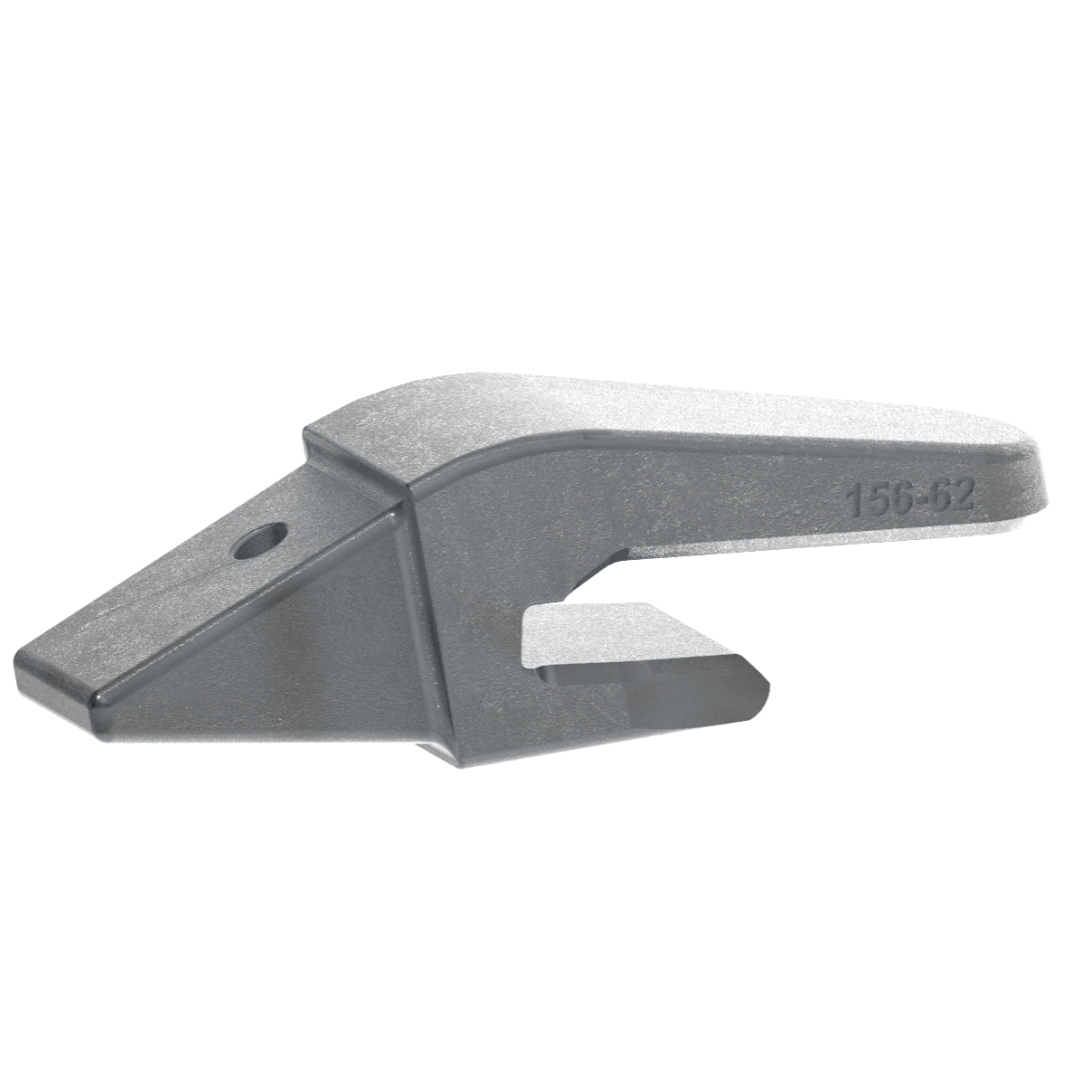

Adapter	156-62	Width	1.85" [47 mm]

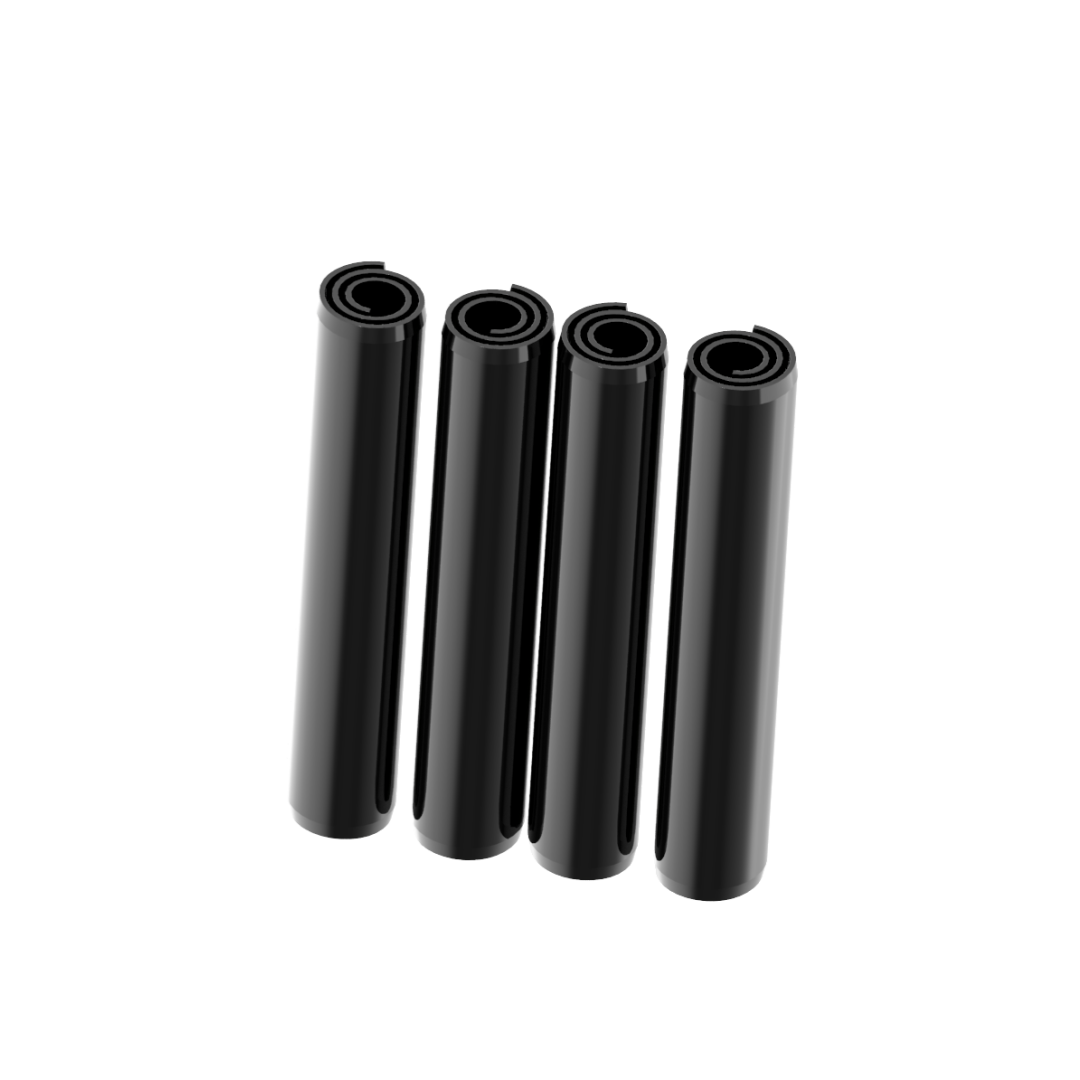

Pin	Flex Pin	Type	Flex Pin
Weigth	5.72 lb 2.6 kg	Colour	Original / Black/ Yellow
Technologies
Tensile Strength(MPa)	≥1350	Materials	Chromium Moly Alloy
Yield Strength(MPa)	≥1100	Production Processes	Lost-Wax/ Silica Sand
Impact (J)	≥25	Certificates	IS09001-2005
Hardness (HB)	450-520	Heat Treatment	Normalizing, Quenching, Tempering

LIHUA Bucket Teeth and Adapter List
Series	Teeth (Part No)	kg/lb	Pin & Washer	Adapter(Part No)	kg/lb
156	156	1.0/2.2	156 Roll Pin	156-62 weld-on 5/8"	2.05/4.5
156	156 L	1.25/2.75	same	same	same
156	X156	1.27/2.8	156 Roll Pin	156-75 weld-on 3/4"	2.75/6.05

Cast teeth and adapter are used on loaders, scrapers, rippers, and scarifiers. They are formed from a medium-carbon, chromium, nickel. molybdenum steel offering high strength and toughness with deep-hardening properties. They have excellent resistance to wear and abrasion. The manufacturing process begins with the pattern which is basically an exact duplicate of the tooth to be cast but slightly over sized to compensate for steel contraction. The mold is made from this pattern.

156 BUCKET TEETH.jpg

To get the desired steel alloy, melt and heat to casting temperature in a large furnace. After this, the steel is poured in using counter-gravity. After being cast, trees must be cooled on a cooling belt (with nitrogen). The ceramic shells are broken with an utterly automatic knock-off hammer to release the trees from their containers and mostly eliminate the ceramic.

manufacturing process.jpg

These products are inspected internally at LIHUA for their dimensioning and material properties, among other things. If so desired, destructive, non-destructive or microstructural analysis can also be performed. In addition the components are delivered to the customer for evaluation. The customer can test the product for functionality, dimensions, strength, appearance and various other important parameters. Based on the results, it is determined whether the product is ready to be produced in series or if additional technical adaptations need to be implemented. High product quality is safeguarded by means of this intensive evaluation phase, as is a stable production process and a high degree of delivery reliability.
