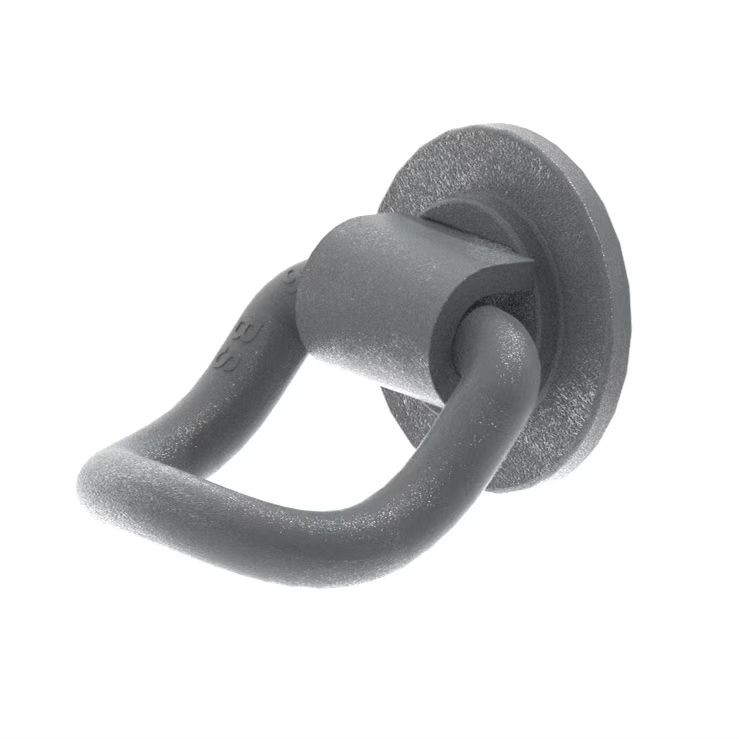

Forged 1Inch 55 Angled D-Ring With Weld-On Mounting Bracket
Colour: Original / Black
Materials: High quality alloy steel
Production processes:Forging
Heat Treatment:
Normalizing, Annealing, Quenching, Tempering
Surface Finish:
Shot Blasting, Polishing, Baking Varnish
Certificates: IATF16949
Transport Package: Wooden Case
Delivery Time: 15-20 Days
We offer the complete product range for spring, truck suspension, steering, driveline, coupling, and hitch product lines. These parts are unmatched in their material, quality and operation. You can find everything you need under one roof. With unwavering precision during manufacturing, our leaf springs meet the highest quality standards and are engineered to withstand even the harshest road conditions. Rigorous quality control checks guarantee their reliability and longevity.
| Specifications | |||
| Part No | 1 inch D-Ring | Total thickness(H) | 1.0" [25.4 mm] |
| Working load limit | 15,586 lb | Total length (L) | 6.0" [152.4 mm] |
Diameter | 1.0" [25.4 mm] | In inner1 | 4" [101.6 mm] |
| Total weight | 3.52 lb /1.6 KG | In inner2 | 3" [76.2 mm] |
| Type | 55° D-Ring | Width (W) | 5.0" [127 mm] |
| Technologies | |||
| Tensile Strength(MPa) | ≥1200 | Materials | 51CrV4/52CrMoV4/60CrMo3-3 |
| Yield Strength(MPa) | ≥1000 | Production Processes | Forging Process |
| Impact (J) | ≥50 | Certificates | IATF 16949 |
Hardness (HB) | 300-330 | Heat Treatment | Quenching, Tempering |
