CE17748R3 Side Cutter

Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes:
Lost-Wax /Precoated Silica Sand
Heat Treatment:
Normalizing, Annealing, Quenching, Tempering
Surface Finish:
Shot Blasting, Polishing, Baking Varnish

Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days

LIHUA castings is a provider of casting parts solutions. From casting Wear Parts to excavator buckets, bucket teeth, and cutting edge blades, we specialize in delivering innovative and high-quality products tailored to meet the diverse needs of our clients.

At LIHUA, our commitment to excellence extends to our manufacturing processes. To this end, a great deal of attention has been paid to all aspects, starting from the design to the selection of raw materials and production processes.

Specifications
Part No	CE17748R3 Side Cutter	Total thickness(H)	3.75" [95 mm]
Side cutter- Bolt hoel	3 Hoel	Total Length(L)	19.5" [502 mm]
Bolts	7/8"-9 L-3.5"	Width	11.22" [285 mm]
Nuts	7/8"-9	Type	R3 / L3
Weigth	40.7 lb 18.5 kg	Colour	Original / Black/ Yellow
Technologies
Tensile Strength(MPa)	≥1350	Materials	Chromium Moly Alloy
Yield Strength(MPa)	≥1100	Production Processes	Lost-Wax/ Silica Sand
Impact (J)	≥25	Certificates	IS09001-2005
Hardness (HB)	450-520	Heat Treatment	Normalizing, Quenching, Tempering

LIHUA Side Cutter List
Part Number	Description	Model	Application	kg/lb
T1156A / T1157A	Side 6 Bolt hole	Esco Series	Blade/combination RH/LH	24.8/54.56
611-0017 RH / LH	Side 6 Bolt hole	same	Blade/combination RH/LH	24.8/54.56
PDE34687	Side 3 Bolt hole	same	Side Cutter RH/LH	6.8/15
CE17748-R3 / L3	Side 3 Bolt hole	same	Blade Side Cutter RH/LH	22.3/49
PDE31329	Side 4 Bolt hole	same	Side Cutter RH/LH	16.8/37
7Y0203 / 7Y0204	Side 4 Bolt hole	CAT Series	E120B, E140B	7.7/17
096-4747 / 48	Side 4 Bolt hole	same	315, 318, 320	12.3/27
7Y0357 / 7Y0358	Side 3 Bolt hole	same	E235, E245, E300	18./41
112-2487 / 88	Side 4 Bolt hole	same	E245, E240, E300	28.6/63

Cast teeth and side cutter are used on loaders, scrapers, rippers, and scarifiers. They are formed from a medium-carbon, chromium, nickel. molybdenum steel offering high strength and toughness with deep-hardening properties. They have excellent resistance to wear and abrasion. The manufacturing process begins with the pattern which is basically an exact duplicate of the tooth to be cast but slightly over sized to compensate for steel contraction. The mold is made from this pattern.

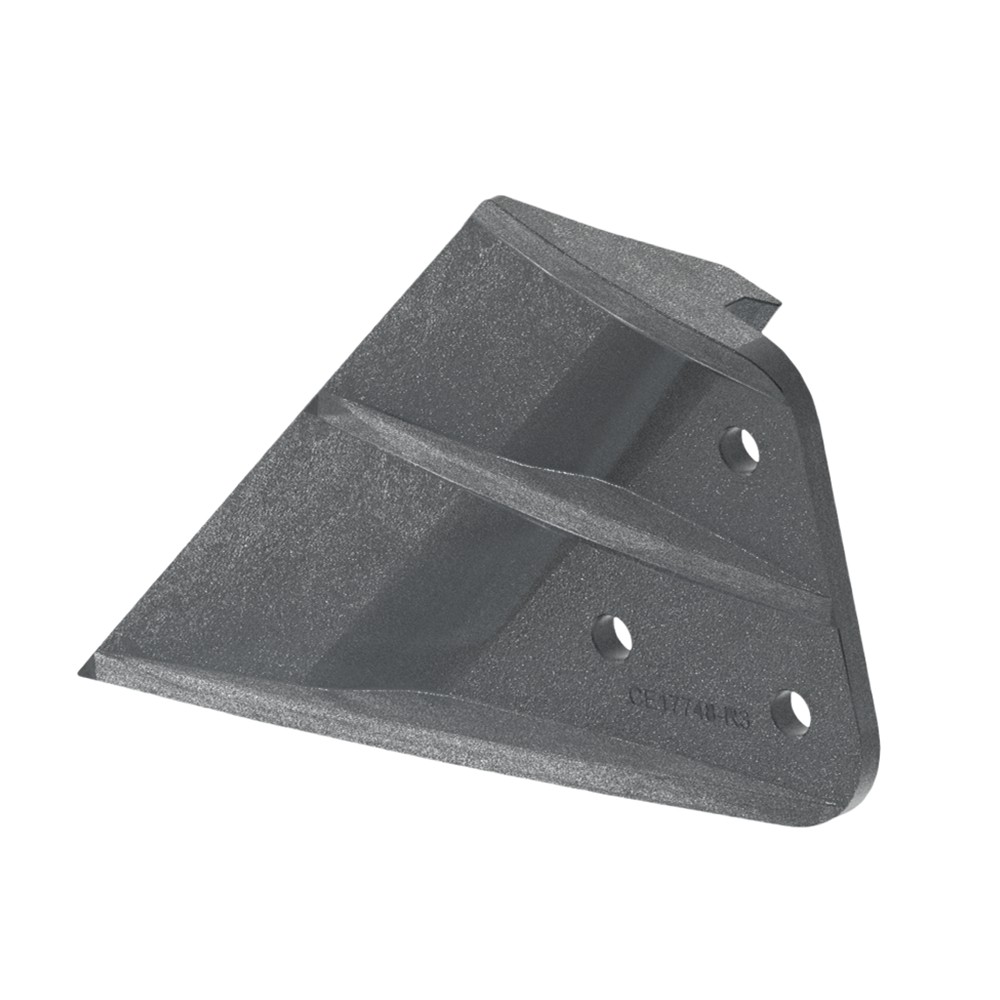

side cutter CAD.jpg

To get the desired steel alloy, melt and heat to casting temperature in a large furnace. After this, the steel is poured in using counter-gravity. After being cast, trees must be cooled on a cooling belt (with nitrogen). The ceramic shells are broken with an utterly automatic knock-off hammer to release the trees from their containers and mostly eliminate the ceramic.

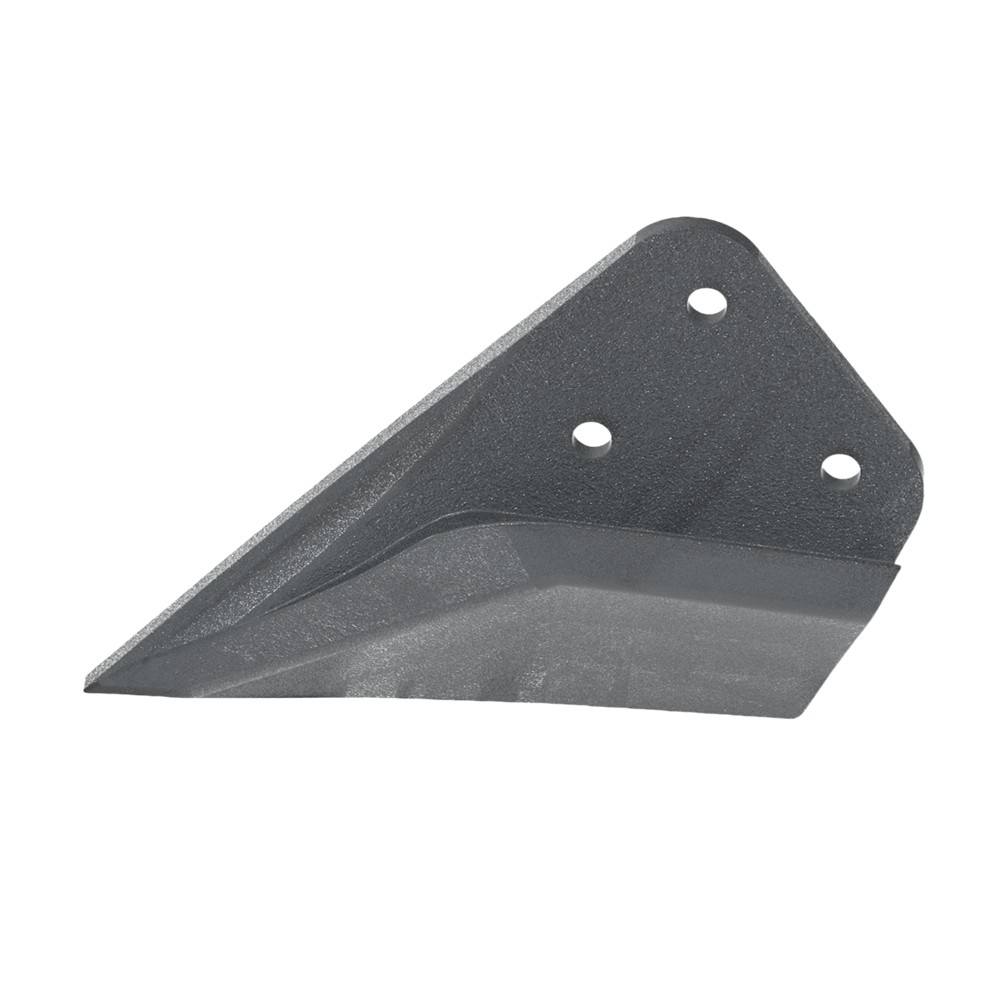

cast side cutter.jpg

These products are inspected internally at LIHUA for their dimensioning and material properties, among other things. If so desired, destructive, non-destructive or microstructural analysis can also be performed. In addition the components are delivered to the customer for evaluation. The customer can test the product for functionality, dimensions, strength, appearance and various other important parameters. Based on the results, it is determined whether the product is ready to be produced in series or if additional technical adaptations need to be implemented. High product quality is safeguarded by means of this intensive evaluation phase, as is a stable production process and a high degree of delivery reliability.

side cutter.jpg
