Colour: Original / Black
Materials: Spring Steel /52CrMnMoV
Production Processes:
Hot Rolling / Forging Process
Heat Treatment:
Normalizing, Annealing, Quenching, Tempering
Surface Finish:
Shot Blasting, Polishing, Baking Varnish
Certificates: IATF16949
Transport Package: Wooden Case
Delivery Time: 15-20 Days

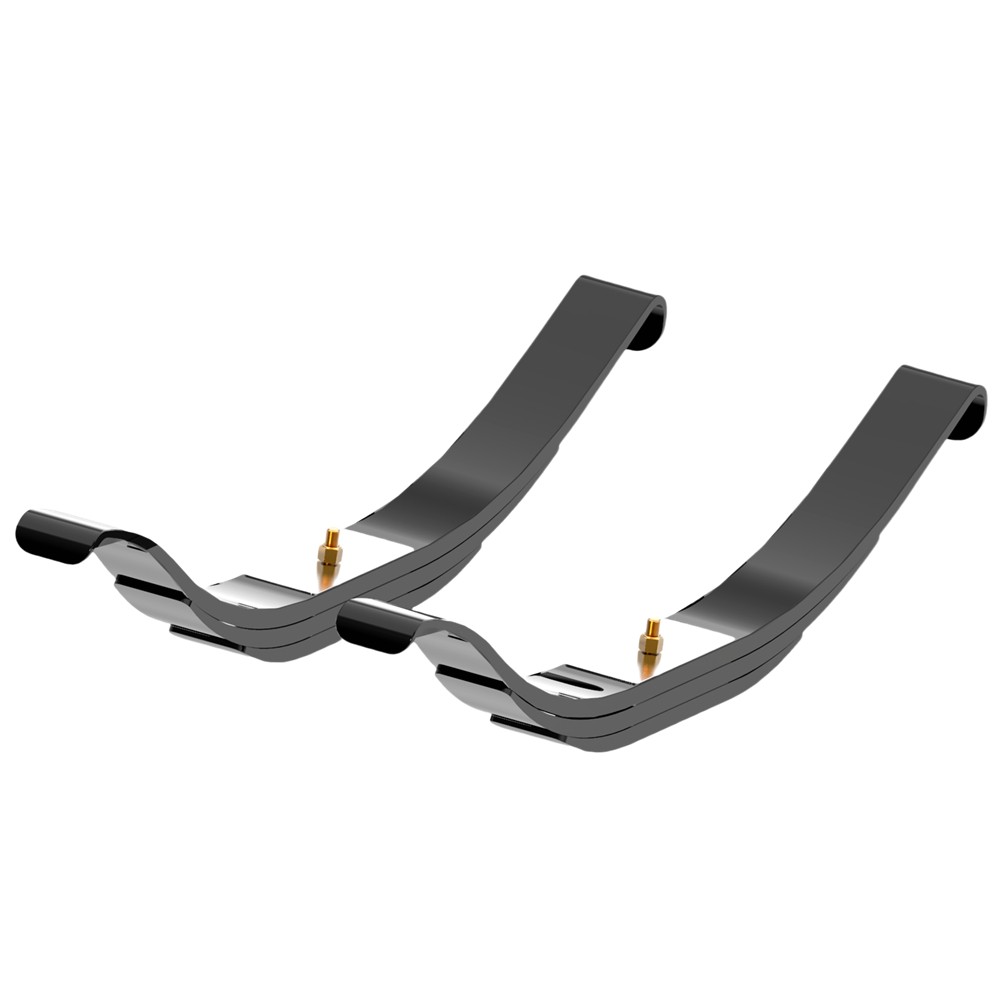

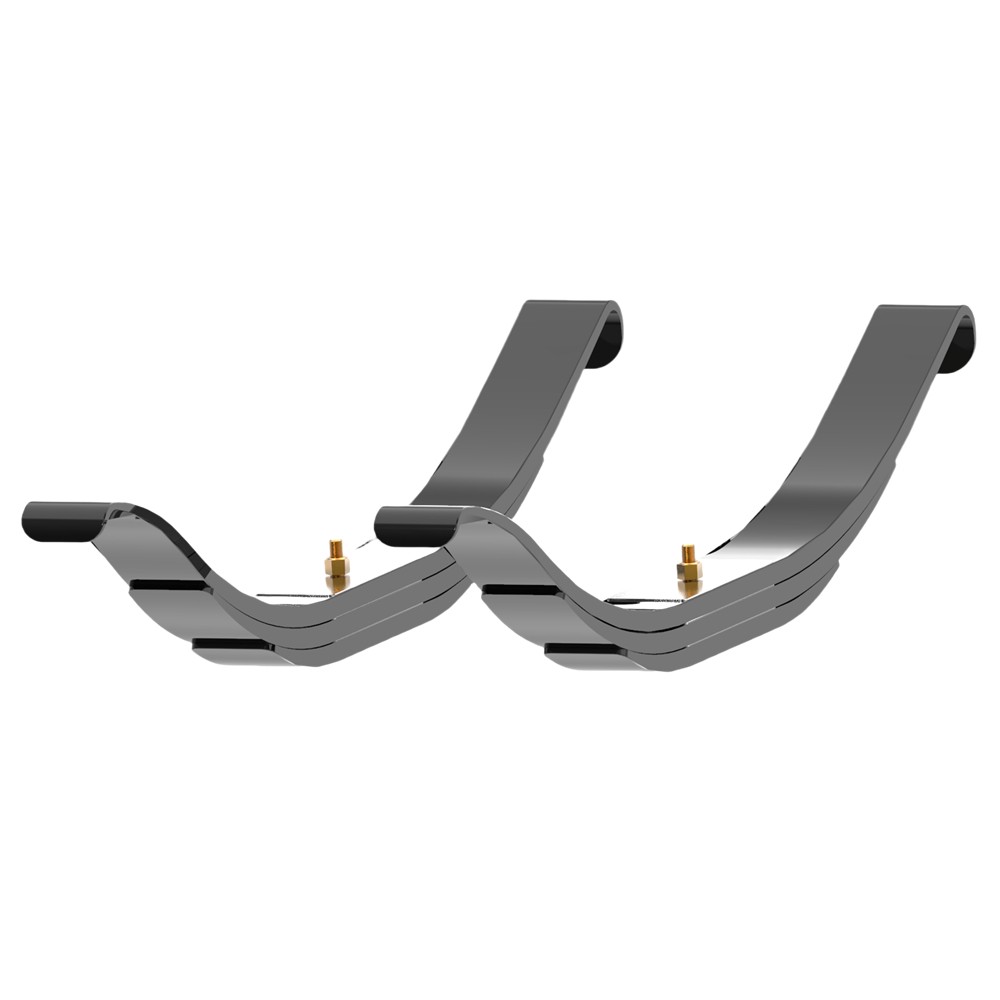

LIHUA offer the complete product range for spring, truck suspension, steering, driveline, coupling, and hitch product lines. These parts are unmatched in their material, quality and operation. You can find everything you need under one roof. With unwavering precision during manufacturing, our leaf springs meet the highest quality standards and are engineered to withstand even the harshest road conditions. Rigorous quality control checks guarantee their reliability and longevity.
Specifications | |||
Working length (L) | 43.75" [1111.3 mm] | Total thickness(H) | 2.21" [56.2 mm] |
Front end length (L1) | 22.5" [571 mm] | Free camber height(H1) | 7.73" [196.34 mm] |
Rear end length (L2) | 21.25" [539.75 mm] | Spring Eye diameter(D) | 0" [ 0 mm] |
Total weight | 48.4 lb /22 KG | Bush in diameter (D1) | 0" [ 0 mm] |
Number of leaves | 3 | Width (W) | 3.0" [76 mm] |
Technologies | |||
Tensile Strength(MPa) | ≥1400 | Materials | 51CrV4/52CrMoV4/60CrMo3-3 |
Yield Strength(MPa) | ≥1200 | Production Processes | Hot Rolling/ Forging Process |
Impact (J) | ≥45 | Certificates | IATF 16949 |
Hardness (HB) | 380-430 | Heat Treatment | Normalizing, Quenching, Tempering |
Suspension Springs
Half extra heavy-duty 5 inch wide leaf springs. Accurate spring alignment preserved by the use of rugged spring guides on the trunnion casting. A split trunnion casting permits easy maintenance and replacement of trunnion bushings. Axle alignment and realignment made possible by adjustable plates within the spring-end boxes. One adjustment plate on each axle is welded at the factory. After axle alignment is completed, the installer welds the other adjustment plate to ensure sustained axle alignment. For increased life and flexibility, thick rubber pads are used above the spring leaves in the axle boxes. This construction permits greater twist freedom in the spring box a standard flexibility feature that reduces wear and promotes better ride characteristics.
These products are inspected internally at LIHUA for their dimensioning and material properties, among other things. If so desired, destructive, non-destructive or microstructural analysis can also be performed. In addition the components are delivered to the customer for evaluation. The customer can test the product for functionality, dimensions, strength, appearance and various other important parameters. Based on the results, it is determined whether the product is ready to be produced in series or if additional technical adaptations need to be implemented. High product quality is safeguarded by means of this intensive evaluation phase, as is a stable production process and a high degree of delivery reliability.
